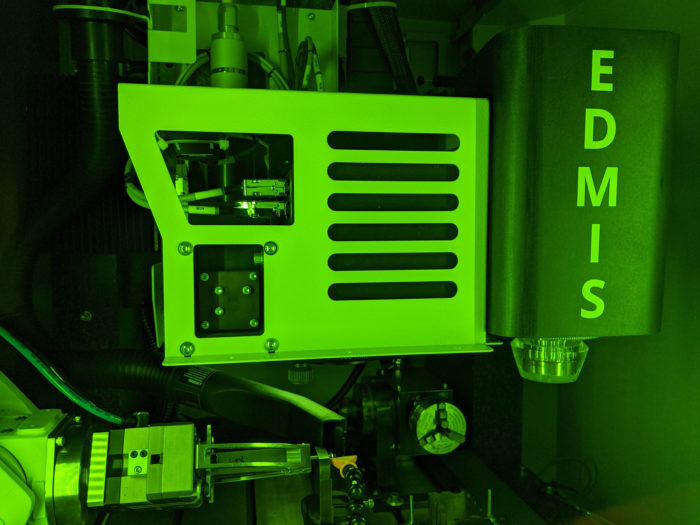

EDM EDMIS LaserMchnRunning

CLM-LSR – LASER-BASED MACHINING SYSTEM

Closed Loop Manufacturing (CLM) systems from EDM Intelligent Solutions pair some of the best high-precision laser ablation machine tools with fully integrated multisensor 3D metrology and tactile inspection technologies, all in one machine. This adaptive manufacturing system brings self-guided production into reality by allowing the machine tool to continuously inspect and adjust its processes in order to meet the ever-shrinking tolerances on high precision workpieces in even the hardest materials. Closed-Loop Manufacturing offers a state-of-the-art, self-optimizing manufacturing intelligence and adaptive machining method for the production of precision components in a variety of overall size ranges.



CLM-LSR System Features & Functionality

  • Advanced 3-Axis CNC Machine Tool platform built for efficient 24/7 operation
  • Automated Form, Roughness and Dimensional Measurement during the machining process
  • Real-time Closed Loop feedback of measurement results to the machine control
  • Automated measurement based corrections to the machining Program
  • Full 3D laser ablation, engraving, surfacing and edge marking
  • 3D and 2D True Position Measurement based off of part datums
  • 3D Difference Measurement vs. CAD model or 3D point cloud
  • Automatic part datum alignment procedures to register part coordinate system
  • Automatic defect detection and text recognition
  • Set up measurements once and run them many times in production environments
  • Automatically measure specific dimensions and generate Pass/Fail Reports as PDF
  • Offline and Online program generation with automatic program generator
  • Intuitive user interface with Administrator, Engineer, and Operator modules
  • Integrated barcode scanner to automatically read part information from shop routers
  • Ready for automatic machine tending by an EDMIS Robotic Load Unload (RLU) System with FANUC or Mitsubishi Robot



CLM-LSR SYSTEM HARDWARE SPECIFICATIONS

Control Type Windows PC
X, Y, Table Size 600 x 700 mm ( 23.6 x 27.5 in )
X, Y, Z Axis Travel 390 x 390 x 160 mm ( 15.3 x 15.3 x 6.3 in )
Max Payload Weight 40 kg
Workpiece Holding System 3R, EROWA, 3-Jaw Lever Chuck

3D IMAGING SENSOR SPECIFICATIONS

Measurement Speed ≤ 1.7 million points/sec
Objectives 5x, 10x, 20x
Min Measurable Roughness 0.25 μm, 10 μinch
Min Measurable Radius 3 μm
Finest Vertical Resolution 70 nm

CLM-EDM – SINKER EDM BASED MACHINING SYSTEM

Closed Loop Manufacturing (CLM) systems from EDM Intelligent Solutions pair some of the best high-precision sinker EDM machine tools with fully integrated multisensor 3D metrology and tactile inspection technologies, all in one machine. This adaptive manufacturing system brings self-guided production into reality by allowing the machine tool to continuously inspect and adjust its processes in order to meet the ever-shrinking tolerances on high precision workpieces in even the hardest materials. Closed-Loop Manufacturing offers a state-of-the-art, self-optimizing manufacturing intelligence and adaptive machining method for the production of precision components in a variety of overall size ranges.



CLM-EDM System Features & Functionality

  • Advanced 4-Axis CNC Machine Tool platform built for efficient 24/7 operation
  • Automated Form, Roughness and Dimensional Measurement during the machining process
  • Real-time Closed Loop feedback of measurement results to the machine control
  • Automated measurement based corrections to the machining Program
  • Full Sinker EDM machining of intricate shapes, blind holes, through holes, and threads
  • 3D and 2D True Position Measurement based off of part datums
  • 3D Difference Measurement vs. CAD model or 3D point cloud
  • Automatic part datum alignment procedures to register part coordinate system
  • Automatic defect detection and text recognition
  • Set up measurements once and run them many times in production environments
  • Automatically measure specific dimensions and generate Pass/Fail Reports as PDF
  • Offline and Online program generation with automatic program generator
  • Intuitive user interface with Administrator, Engineer, and Operator modules
  • Integrated barcode scanner to automatically read part information from shop routers
  • Ready for automatic machine tending by an EDMIS Robotic Load Unload (RLU) System with FANUC or Mitsubishi Robot



CLM-EDM SYSTEM HARDWARE SPECIFICATIONS

Control Type Windows PC
X, Y, Table Size 550 x 350 mm ( 21.6 x 13.7 in )
X, Y, Z Axis Travel 350 x 250 x 250 mm ( 13.7 x 9.8 x 9.8 in )
Max Electrode Weight 75 kgs
Workpiece Holding System 3R, EROWA, 3-Jaw Lever Chuck

3D IMAGING SENSOR SPECIFICATIONS

Measurement Speed ≤ 1.7 million points/sec
Objectives 5x, 10x, 20x
Min Measurable Roughness 0.25 μm, 10 μinch
Min Measurable Radius 3 μm
Finest Vertical Resolution 70 nm

3D Metrology Measurements Applicable to this EDMIS System

Each Closed Loop Manufacturing System from EDM Intelligent Solutions is capable of completing the types of 3D Metrology measurements shown below.

FORM MEASUREMENT

3D Measurement Feature Extraction

DIFFERENCE MEASUREMENT

3D Difference Model Stamped Clip

SURFACE ROUGHNESS MEASUREMENT

3D Surface Roughness Stamped Component

Capabilities Beyond Measurement

3D Difference Model Cutting Tool

Competitive 3D Metrology Systems and Solutions
