3D Metrology Services – Medical – Form Scan & STL Output

At EDM Intelligent Solutions, our high-resolution 3D scans of piece parts allow for form measurement down to the µm scale. A form measurement is made by cutting profiles across the 3D part scan data set and those included points are used to gather various form dimensions including radii, angles, slot width, height step and more. With our 3D Metrology Services, we’re able to offer our customers in-depth, non-contact measurements of almost any shape, size, and form.

Below is an example of a medical manufacturing test block that was scanned on our MVi5 3D Metrology System. Multiple form measurements were taken along with a difference measurement, to compare the scanned parts back to the 3D nominal CAD/CAM model. Lastly, the fully merged scan was exported as a STL file for import into industry standard CAD/CAM environments.



APPLICATION DETAILS

  • Component – Medical Manufacturing Test Block
  • Material – Plastic and Steel
  • Metrology Services
    • Form Measurement
    • Difference Measurement
    • .STL File Export

3D Form Scan

Medical 3D Form Scan and Output to STL FileOutput to STL File

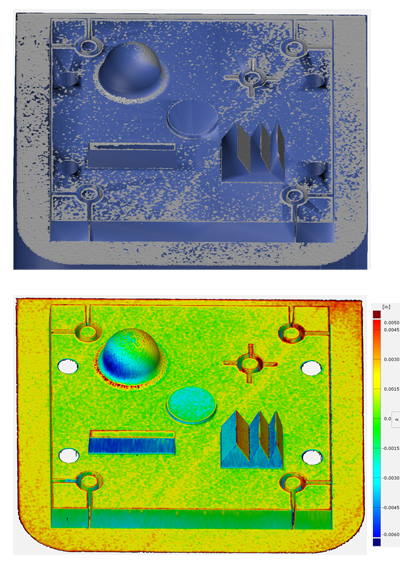

Medical 3D Form Scan and Output to STL FileComparison to CAD

Medical 3D Form Scan and Output to STL File

COMPETITIVE 3D METROLOGY, MEASUREMENT, AND INSPECTION SERVICES

Intelligent solutions to manufacturing and measurement challenges are what we do. Over the past 25 years, we’ve completed thousands of measurement and metrology projects. What differentiates EDM Intelligent Solutions 3D Metrology services from the competition is our unique understanding of each manufacturing process. The EDMIS metrology technicians and applications engineers support their colleagues in our tight tolerance CNC machine shop that produces ultra-precision components for customers every day. Harnessing this unique relationship with manufacturing, our metrology team has the experience needed to fully assist our customers leverage the measurements taken of their components to improve their manufacturing processes. We are confident that we can measure your most challenging components and work with you to fully understand what those measurements tell you about them. To learn more about how EDMIS can help you, contact our metrology team with your request for quote.
